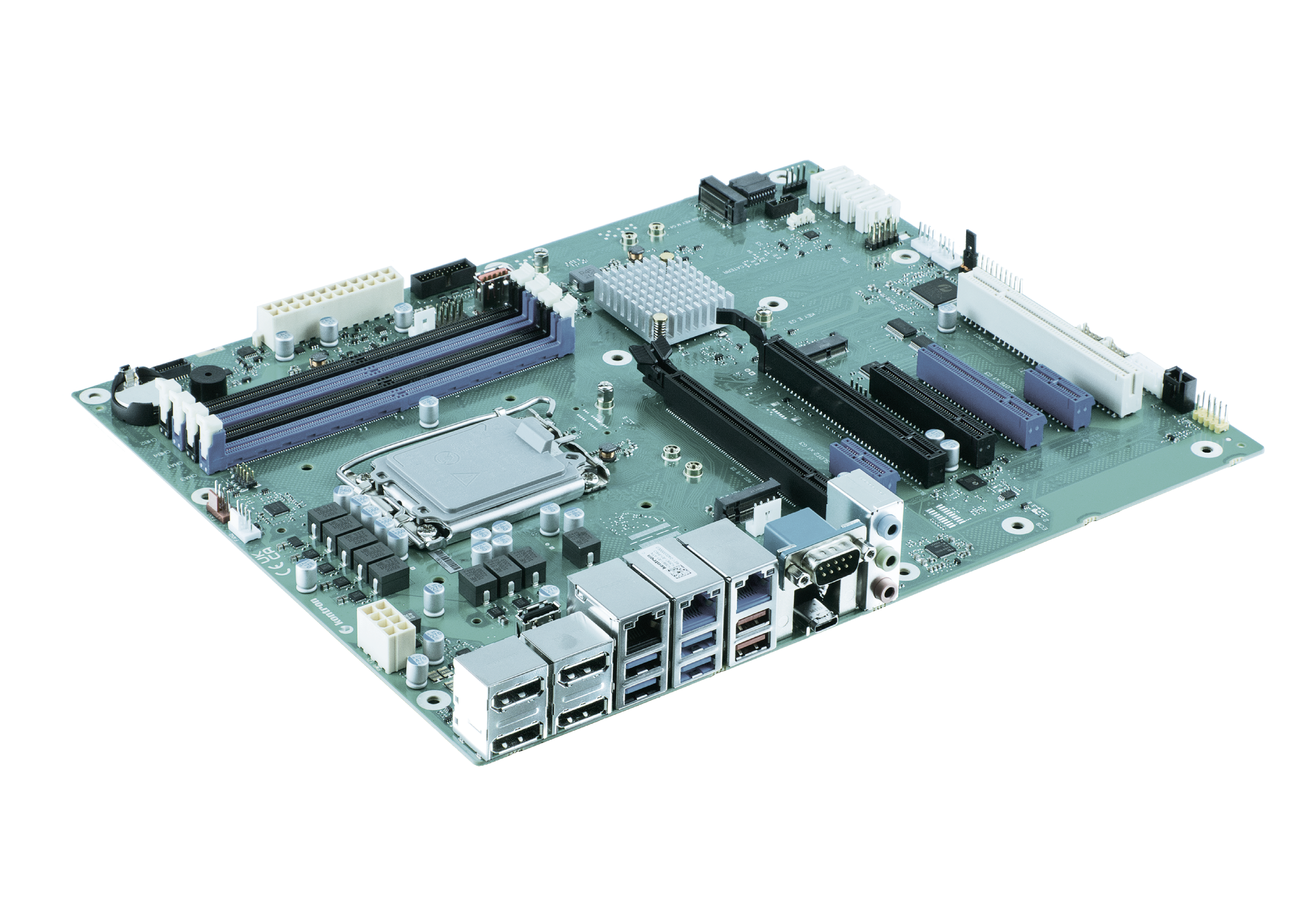

K3851-R ATX motherboard: High performance for specific industrial applications.

The K3851-R is based on the latest Intel® Core™ i 12th generation processors (LGA1700 with 125W TDP) and includes an Intel® R680E chipset. The motherboard is suitable for use in an enhanced temperature range of 0 °C up to +60 °C and 24/7 continuous operation.

It has extensive expansion options for extremely flexible use:

• 6x PCIe slots,
• 3x LAN interfaces (1GbE/2.5GbE incl. AMT, Teaming, and TSN support)
• 2x M.2 Key-M SSD as well as 1x M.2 Key-E WLAN slots
• 4x DDR5-4800 UDIMM socket (dual channel, max. 128 GByte)
• 13x USB interfaces (USB 3.2 Gen2 as well as Type C)

The component supports DDR5, PCI Express Gen5, and TSN or real-time (TCC) and is thus ideally suited for implementation in future-oriented applications. These include industrial automation markets, control PCs in 19’’ rack control PCs (including robotics), high-performance workstations, and video editing or display. The K3851-R also has an integrated TPM 2.0 for Windows 11 support
